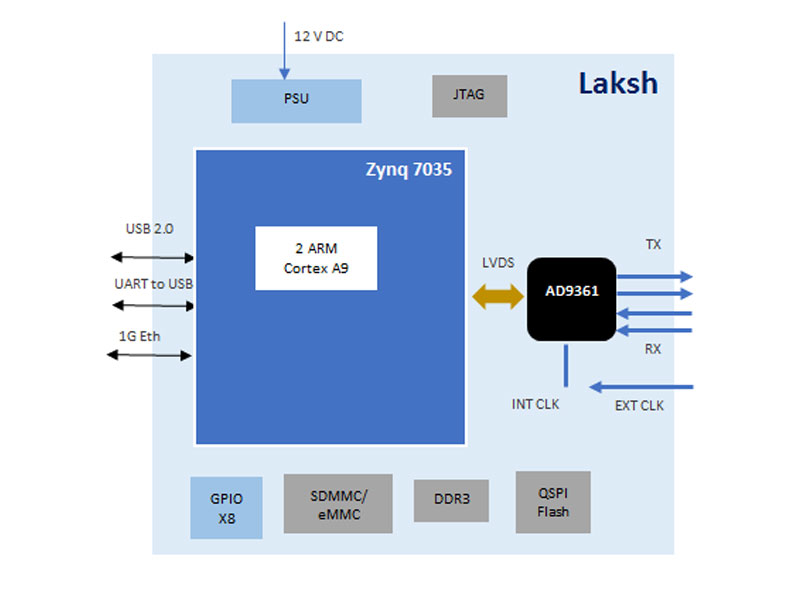

Laksh Hardware platform board is a Zynq FPGA SoC based SDR board capable of hosting multiple Waveforms. The on-board wideband RF Transceiver unit (70MHz – 6GHz) ensures that with minimal change in the RF front end circuit, several combinations of Transmit power, receive gain, Multiplexing schemes (TDD/ FDD), can be achieved. The embedded software defined radio supports an instant bandwidth of 56MHz. The boards are also available in fully enclosed formfactor. The board supports an option of providing external high precision clock source.

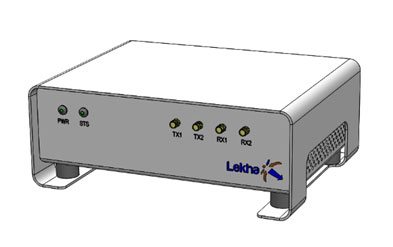

Optional Enclosure for Laksh SDR board
| Interface | Description |
|---|---|
| Non-Volatile Memory | 4GB SDMMC/ eMMC |
| SDRAM | DDR3L, 1GB |
| Ethernet | GigE, 1 Port |
| USB | USB 2.0, 1 Port |
| UART | UART at RS232 Levels, 1 Port |
| GPIOs | 8 GPIO Pins |
| LED | Power ON, Status/ Error |
| Tx 1 and Tx2 SMA connector | Configurable 70MHz to 6GHz |
| Rx1 and Rx2 SMA connector | Configurable 70MHz to 6GHz |
| Maximum Transmit Power | 0dBm |
| Maximum Receive Input Power | 0 dBm |
| Number of Tx Ports | 1 or 2 (Board Option) |
